Layer 3: The Shield
Layer 2: The Binder
Layer 1: The Core
INTUMESCENT SHIELD
APP & Bio - PER (Intumescent solids)
BIO-BINDER
Chitosan-Citrate Hydrogel (Shrimp Shells)
UPCYCLED MATRIX
(Coconut Coir Waste Fibers)
Bio-Shield Mat: Layered Structure
**3D Generated by Fusion360

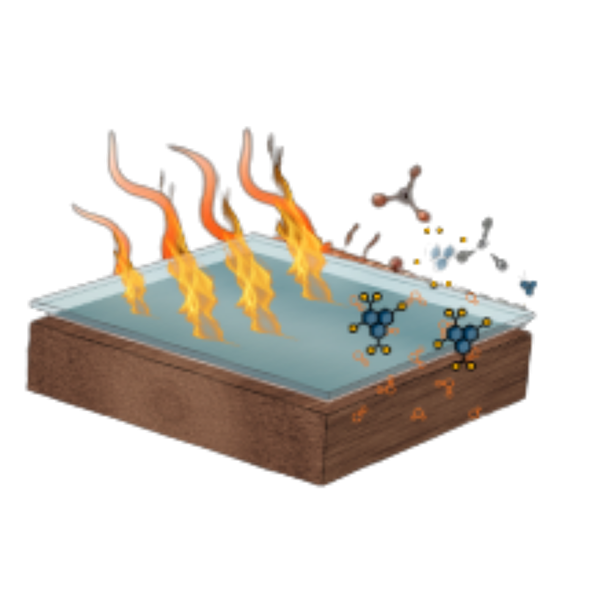

1: HEAT
(flame exposure)
Heat triggers protective charring.
2: EXPAND
(barrier forms)
Insulates and slows heat transfer

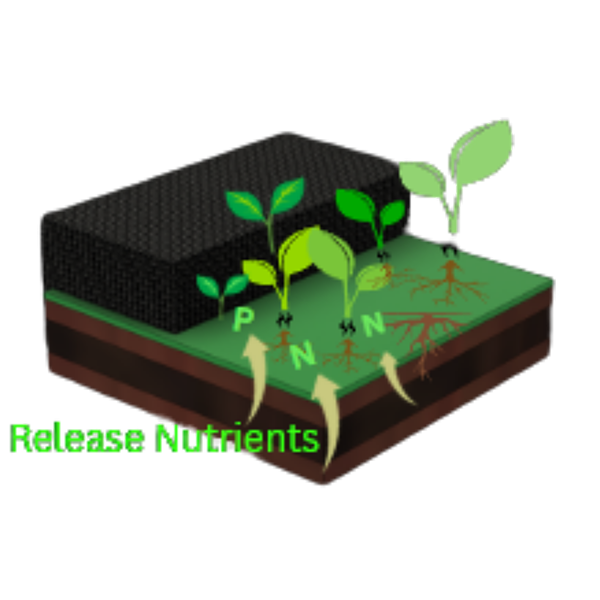

3: BIODEGRADE
(end-of-season)
Designed to biodegrade after the season; potential nutrient release
